Without Treatment
Feature

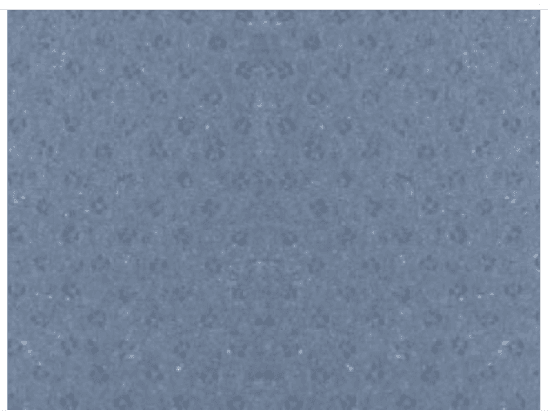

It is made of galvanized or tin-plated thin iron plate after sprinting and asbestos copying.
Temperature: Below 450 °C
Pressure: 35.0Mpa
Application
It is suitable for the production and processing of cylinder gaskets and intake and exhaust gaskets for various automobile, motorcycle engines, generators, internal combustion engines, diesel engines and other mechanical equipment.
Specification
1000mm x 500 mm
Thickness
1.2 MM
1.4 MM
2.0 MM
| STEEL BESTOS – Without Treatment | |||
|---|---|---|---|
| ITEMS | Structure | ||

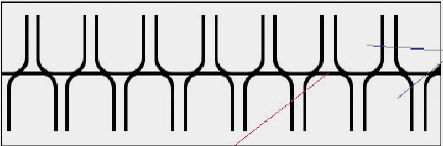

| Compressibility | % | 15±5 | Structure of composilte panels Asbestos Fiber Synthetic Rubber，Heat-resistant Filler Sepiolite Fiber, Sythetic Rubber, Heat-resistant Filler Beater Sheet,Asbestos-free Beater Sheet Double-deduction of Metal Platc |
| Recovery | %≥ | 45 | |
| Immersed into the 20# lubricant oil for 5h at 150℃ | |||
| Oil absorption | %≤ | 15 | |
| Weight increase | %≥ | 10 | |
| Immersed into aviation oil or 75# aviation fuel or 3# air fuel during 15℃～30℃ for 5 h | |||
| Oil absorption | %≤ | 15 | |
